PR-7 series

Meer dan 10 milj euro aan stock beschikbaar voor onmiddelijke levering
Verschillende producten beschikbaar dezelfde dag of leverbaar daags nadien.
Europees distrubuteurschap voor wereldwijde levering.

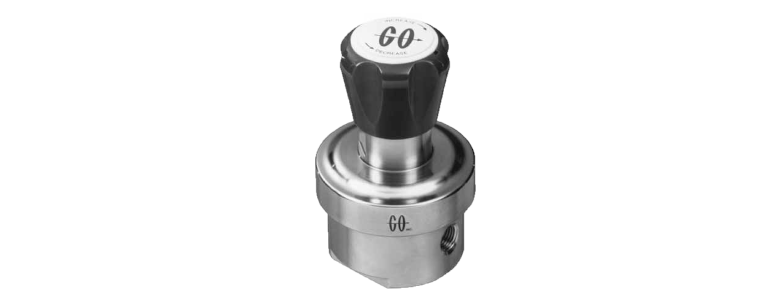

A high flow single stage regulator available in Brass Alloy 360 or 316L SS with inlet pressures up to 3600 psig and outlet pressures of 0–25 to 0–500 psig. Cv: 1.1.

FEATURES & SPECIFICATIONS
  • Inlet pressure: 300 psi, 1 000 psi, 3 600 psi.
  • Pressure range: 0 to 1, 0 to 10 – 0 to 25 – 0 to 50 – 0 to 100 – 0 to 150, 0 to 250 0 to 500.
  • Operating temperatures: up to 250° F.
  • Body: SS316L, Monel, and Hastelloy C and brass.
  • Surface finished: < 25 Ra.
  • Cv: 1.1.
  • Main valve: SS316L.
  • Seat: Viton (standard), EPR, Buna-N, Kalrez®,
  • Filter: 20 micron.
  • Diaphragm: many material configuration available.
  • Diaphragm type: no-Self-relieving, self-relieving.
  • Port: see the port configuration (2 to 6 ports).
